Denon-AVR1312XP-avr-sm维修电路原理图.pdf

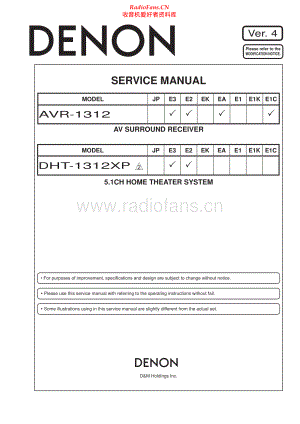

START:|qzT7t3cIXfGvpSN6RPbAWw=|i4QKmwTsguF5/wkPVABzlM4GcWQGNoMv02uNeNz1Wog=|RtRIz5LbaS+BXuKmvA5tJg=|:ENDD&M Holdings Inc.SERVICE MANUALeeVer. 4 Some illustrations using in this service manual are slightly different from the actual set. Please use this service manual with referring to the operating instructions without fail. For purposes of improvement, specifications and design are subject to change without notice.MODELJPE3E2EKEAE1E1K E1CAVR-1312PPPPAV SURROUND RECEIVERMODELJPE3E2EKEAE1E1K E1CDHT-1312XP sPP5.1CH HOME THEATER SYSTEMPlease refer to the MODIFICATION NOTICE.RadioFans.CN 收音机爱 好者资料库2CONTENTSSAFETY PRECAUTIONS .3NOTE FOR SCHEMATIC DIAGRAM .4TECHNICAL SPECIFICATIONS .5DIMENSION .5CAUTIONS IN SERVICING .6Initializing AV SURROUND RECEIVER .6Service Jig .6DISASSEMBLY .71. FRONT PANEL ASSY .82. HDMI UNIT .93. INPUT UNIT .104. RADIATOR ASSY .115. POWER UNIT.126. POWER TRANS .12SPECIAL MODE .13Special mode setting button .131. com/DSP Version display mode .14WHEN THE MICROPROCESSOR IS REPLACED WITH A NEW ONE .15PROCEDURE FOR UPGRADING THE VERSION OF THE FIRMWARE .151. Preparations .152. UPDATE FIRMWARE .163. Notice: .27Confirming the firmwares number after upgraded .27ADJUSTMENT .28Audio Section .28SURROUND MODES AND PARAMETERS .29TROUBLE SHOOTING .331. POWER .332. Analog video .343. HDMI/DVI .354. AUDIO .40CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK .42BLOCK DIAGRAM .43LAEVEL DIAGRAM .47PRINTED WIRING BOARDS .49FRONT (COMPONENT SIDE) .49POWER (COMPONENT SIDE).49HEADPHONE (COMPONENT SIDE) .49PORTABLE IN (COMPONENT SIDE) .49REGULATOR (COMPONENT SIDE) .49VOLUME (COMPONENT SIDE) .49VOLUME (FOIL SIDE) .50REGULATOR (FOIL SIDE).50FRONT (FOIL SIDE) .50PORTABLE IN (FOIL SIDE) .50HEADPHONE (FOIL SIDE) .50POWER (FOIL SIDE) .50MAIN (COMPONENT SIDE) .51INPUT (COMPONENT SIDE) .52INPUT (FOIL SIDE) .53HDMI (COMPONENT SIDE) .54HDMI (FOIL SIDE) .54SCHEMATIC DIAGRAMS (1/7) .55FRONT UNIT .55POWER UNIT .55HEADPHONE UNIT .55PORTABLE UNIT .55PORTABLE UNIT(AVR-1312 ONLY) .55PORTABLE UNIT(AVR-1312 ONLY) .55iPOD/USB UNIT(AVR-1612 ONLY) .55SCHEMATIC DIAGRAMS (2/7) .56FRONT PART .56SCHEMATIC DIAGRAMS (3/7) .57INPUT & VOLUME UNIT .57SCHEMATIC DIAGRAMS (4/7) .58VIDEO UNIT .58SCHEMATIC DIAGRAMS (5/7) .59DSP UNIT .59SCHEMATIC DIAGRAMS (6/7) .60MCU UNIT .60SCHEMATIC DIAGRAMS (7/7) .61MAIN UNIT .61WIRING DIAGRAM .62EXPLODED VIEW .63PARTS LIST OF EXPLODED VIEW .64PACKING VIEW (for AVR-1312) .67PARTS LIST OF PACKING & ACCESSORIES (for AVR-1312) .68PACKING VIEW (for DHT-1312XP) .69PARTS LIST OF PACKING & ACCESSORIES (for DHT-1312XP) .69SEMICONDUCTORS .701. ICs .702. FL DISPLAY.88PARTS LIST OF P.W.B. UNIT .90FRONT P.W.B. UNIT ASSY .90MAIN P.W.B. UNIT ASSY .93INPUT P.W.B. UNIT ASSY .97HDMI P.W.B. UNIT ASSY .101SPEAKER SYSTEM PACK .103TECHNICAL SPECIFICATIONS .103DIMENSION .103SC-C1312 EXPLODED VIEW .104SC-C1312 PARTS LIST OF EXPLODED VIEW .104SC-F1312 EXPLODED VIEW .105SC-F1312(F) PARTS LIST OF EXPLODED VIEW .105SC-F1312(R) PARTS LIST OF EXPLODED VIEW .105DSW-1312 EXPLODED VIEW .106DSW-1312 PARTS LIST OF EXPLODED VIEW .106SYS-1312 PACKING VIEW .107SYS-1312 PARTS LIST OF PACKING VIEW .108SCHEMATIC DIAGRAMS (1/1) .110RadioFans.CN 收音机爱 好者资料库3SAFETY PRECAUTIONSThe following items should be checked for continued protection of the customer and the service technician.LEAKAGE CURRENT CHECKBefore returning the set to the customer, be sure to carry out either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the set is defective. Be sure to test for leakage current with the AC plug in both polarities, in addition, when the sets power is in each state (on, off and standby mode), if applicable.CAUTION Please heed the following cautions and instructions during servicing and inspection. Heed the cautions!Cautions which are delicate in particular for servicing are labeled on the cabinets, the parts and the chassis, etc. Be sure to heed these cautions and the cautions described in the handling instructions. Cautions concerning electric shock!(1) An AC voltage is impressed on this set, so if you touch internal metal parts when the set is energized, you may get an electric shock. Avoid getting an electric shock, by using an isolating transformer and wearing gloves when servicing while the set is energized, or by unplugging the power cord when replacing parts, for example.(2) There are high voltage parts inside. Handle with extra care when the set is energized. Caution concerning disassembly and assembly!Through great care is taken when parts were manufactured from sheet metal, there may be burrs on the edges of parts. The burrs could cause injury if fingers are moved across them in some rare cases. Wear gloves to protect your hands. Use only designated parts!The sets parts have specific safety properties (fire resistance, voltage resistance, etc.). Be sure to use parts which have the same properties for replacement. The burrs have the same properties. In particular, for the important safety parts that are indicated by the z mark on schematic diagrams and parts lists, be sure to use the designated parts. Be sure to mount parts and arrange the wires as they were originally placed!For safety seasons, some parts use tapes, tubes or other insulating materials, and some parts are mounted away from the surface of printed circuit boards. Care is also taken with the positions of the wires by arranging them and using clamps to keep them away from heating and high voltage parts, so be sure to set everything back as it was originally placed. Make a safety check after servicing!Check that all screws, parts and wires removed or disconnected when servicing have been put back in their original positions, check that no serviced parts have deteriorate the area around. Then make an insulation check on the external metal connectors and between the blades of the power plug, and otherwise check that safety is ensured.(Insulation check procedure)Unplug the power cord from the power outlet, disconnect the antenna, plugs, etc., and on the power. Using a 500V insulation resistance tester, check that the insulation resistance value between the inplug and the externally exposed metal parts (antenna terminal, headphones terminal, input terminal, etc.) is 1M or greater. If it is less, the set must be inspected and repaired.Many of the electric and the structural parts used in the set have special safety properties. In most cases these properties are difficult to distinguish by sight, and the use of replacement parts with higher ratings (rated power and withstand voltage) does not necessarily guarantee that safety performance will be preserved. Parts with safety properties are indicated as shown below on the wiring diagrams and the parts list in this service manual. Be sure to replace them with the parts which have the designated part number.(1) Schematic diagrams .Indicated by the z mark.(2) Parts lists .Indicated by the z mark.The use of parts other than the designated parts could cause electric shocks, fires or other dangerous situations.CAUTION Concerning important safety parts4NOTE FOR SCHEMATIC DIAGRAMWARNING:Parts indicated by the z mark have critical characteristics. Use ONLY replacement parts recommended by the manufacturer.CAUTION:Before returning the set to the customer, be sure to carry out either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the set is defective.WARNING:DO NOT return the set to the customer unless the problem is identified and remedied.NOTICE:ALL RESISTANCE VALUES IN OHM. k=1,000 OHM / M=1,000,000 OHMALL CAPACITANCE VALUES ARE EXPRESSED IN MICRO FARAD, UNLESS OTHERWISE INDICATED. P INDICATES MICRO-MICRO FARAD. EACH VOLTAGE AND CURRENT ARE MEASURED AT NO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.Parts indicated by nsp on this table cannot be supplied.When ordering a part, make a clear distinction between 1 and I (i) to avoid mis-supplying.A part ordered without specifying its part number can not be supplied. General-purpose Carbon Chip Resistors are not included are not included in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.)Parts indicated by the z mark have critical characteristics. Use ONLY replacement parts recommended by the manufacturer.General-purpose Carbon Film Resistor in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.)Part indicated by mark is not illustrated in the exploded view.WARNING:1.2.3.4.5.6.ResistorsRD:CarbonRC:CompositionRS :Metal oxide filmRW:windingRN:Metal filmRK :Metal mixtureP:Pulse-resistant typeNL :Low noise typeNB :Non-burning typeFR :Fuse-resistorF:Lead wire forming2B :1/8 W2E :1/4 W2H :1/2 W3A :1 W3D :2 W3F :3 W3H :5 WF:1%G:2%J:5%K:10%M :20%Ex.:RNType14KShapeand per-formance2EPower182Resist-anceGAllowableerrorFROthers* Resistance1800ohm=1.8kohm1 82Indicates number of zeros after effective number.2-digit effective number.1.2ohm1 R22-digit effective number, decimal point indicated by R.1-digit effective number.: Units: ohmNOTE FOR PARTS LIST5TECHNICAL SPECIFICATIONS n Audio SectionPoweramplifierRated output :Front : 75 W + 75 W (8 , 20 Hz 20 kHz with 0.08 % T.H.D.)110 W + 110 W (6 , 1 kHz with 0.7 % T.H.D.)Center :75 W (8 , 20 Hz 20 kHz with 0.08 % T.H.D.)110 W (6 , 1 kHz with 0.7 % T.H.D.)Surround :75 W + 75 W (8 , 20 Hz 20 kHz with 0.08 % T.H.D.)110 W + 110 W (6 , 1 kHz with 0.7 % T.H.D.)Output connectors : 6 16 AnalogInput sensitivity/Input impedance : 200 mV/47 kFrequency response: 10 Hz 100 kHz 0, 3 dB (DIRECT mode)S/N : 98 dB (IHFA weighted, DIRECT mode) n Tuner sectionFM(Note: V at 75 , 0 dBf = 1 x 1015 W)Receiving Range (for E3) : FM 87.5 MHz 107.9 MHz AM520 kHz 1710 kHzReceiving Range (for E2, EA, E1C) : FM 57.5 MHz 108.0 MHz AM522 kHz 1611 kHzUsable Sensitivity :FM1.2 V (12.8 dBf) AM18 V50 dB Quieting Sensitivity :FMMONO 2.8 V (20.2 dBf)S/N (IHF-A) :FMMONO 70 dBSTEREO 67 dBTotal harmonic Distortion (at 1 kHz) :FMMONO 0.7 %STEREO 1.0 % n GeneralPower supply (for E3) : AC 120 V, 60 Hz (for E2, EA) : AC 230 V, 50 Hz / 60Hz (for E1C) : AC 220 V, 50 Hz Power consumption :330 W0.5 W (Standby)Maximum external dimensions :435 (W) x 162 (H) x 382 (D) mmWeight : 9.2 kg n Remote Control Unit (RC-1158)Batteries : R03/AAA Type (two batteries)Maximum external dimensions : 50 (W) x 211 (H) x 22 (D) mmWeight : 110 g (including batteries)DIMENSION245.043.530.5340.0435.015.0147.0162.021.554.7236.8338.5382.022.086.030.56CAUTIONS IN SERVICINGInitializing AV SURROUND RECEIVERAV SURROUND RECEIVER initialization should be performed when the com, peripheral parts of com, and Digital P.W.B. were replaced.1. Turn off the power pressing ON/STANDBY button.2. Press ON/STANDBY button while simultaneously while pressing DOCK CONTROL 8 and DOCK CONTROL 9 buttons.3. Check that the entire display is flashing at intervals of about 1 second, and then release the 2 buttons. The microprocessor will be initialized.Service Jig When you update the firmware, you can use the followingJIG (RS232C to internal connector conversion adapter). Please order it from Denon Official Service Distributor in your region if necessary.8U-210100S : WRITING KIT : 1 Set606050028012P : 7P FFC(1.0) L-240 : 1 Set(Refer to PROCEDURE FOR UPGRADING THE VERSION OF THE FIRMWARE.)Note: If step 3 fails, start over from step 1. All user settings will be lost and the factory setting will be recovered after the set is initialized. So make sure to note down your setting beforehand for restoring after the initialization.ON/STANDBYDOCK CONTROL 8DOCK CONTROL 97DISASSEMBLY Disassemble in order of the arrow in the following figure. In the case of the re-assembling, assemble it in order of the reverse of the following flow. In the case of the re-assembling, observe attention of assembling. If wire bundles are untied or moved to perform adjustment or replace parts etc., be sure to rearrange them neatly as they were originally bundled or placed afterward. Otherwise, incorrect arrangement can be a cause of noise generation.About the photos used for descriptions of the DISASSEMBLY section The shooting direction of each photograph used herein is indicated on the left side of the respective photograph as Shooting direction: *. Refer to the diagram below about the shooting direction of each photograph. Photographs with no shooting direction indicated were taken from the top of the set. The viewpoint of each photograph(Shooting direction)View from the topFront sideShooting direction : BShooting direction: DShooting direction: CShooting direction: AFRONT PANEL ASSYRefer to DISASSEMBLY 1. FRONT PANEL ASSYand EXPLODED VIEWPORTABLE IN UNIT(Ref. No. of EXPLODED VIEW : C1)VOLUME UNIT(Ref. No. of EXPLODED VIEW : C2)FRONT UNIT(Ref. No. of EXPLODED VIEW : C3)HEADPHONE UNIT(Ref. No. of EXPLODED VIEW : C4)POWER UNIT(Ref. No. of EXPLODED VIEW : C5)HDMI UNITRefer to DISASSEMBLY 2. HDMI UNITand EXPLODED VIEWHDMI UNIT(Ref. No. of EXPLODED VIEW : C11)INPUT UNITRefer to DISASSEMBLY 3. INPUT UNITand EXPLODED VIEWINPUT UNIT(Ref. No. of EXPLODED VIEW : C10)RADIATOR ASSYRefer to DISASSEMBLY 4. RADIATOR ASSYand EXPLODED VIEWMAIN UNIT(Ref. No. of EXPLODED VIEW : C6)TOP COVERPOWER UNITRefer to DISASSEMBLY 5. POWER UNITand EXPLODED VIEWREGULATOT UNIT(Ref. No. of EXPLODED VIEW : C7)POWER TRANS Refer to DISASSEMBLY 6. POWER TRANS and EXPLODED VIEWPOWER TRANS (Ref. No. of EXPLODED VIEW : C14)81. FRONT PANEL ASSY(1) Remove the screws.(2) Cut the wire clamp band, then disconnect the connector wires and FFC cable. Remove the screws.(3) Remove the screws.TOP COVERFRONT PANEL ASSYProceeding : View from the bottomCN610CN71FFC cableCN603cutFRONT PANEL ASSYPlease refer to EXPLODED VIEW for the disassembly method of each P.W.B included in FRONT PANEL ASSY.92. HDMI UNIT(1) Remove the screws.(2) Disconnect the connector wire and FFC cable.TOP COVERHDMI UNITProceeding : Shooting direction: ACN12FFC cableHDMI UNIT103. INPUT UNIT(1) Remove the screws.(2) Disconnect the connector wires and FFC cables, then remove the screws. TOP COVERHDMI UNITINPUT UNITProceeding : Shooting direction: ACN42CN71FFC cableFFC cableCN43INPUT UNITcut114. RADIATOR ASSY(1) Remove the screws.(2) Disconnect the connector wires, then remove the screws. (3) Disconnect the connector wire, then remove the screws. Remove the RADIATOR ASSY from the main unit.TOP COVERHDMI UNITINPUT UNITRADIATOR ASSYProceeding : Shooting direction: ARADIATOR ASSYCN45CN47CN48CN46cutcutShooting direction: CCN41RADIATOR ASSYPlease refer to EXPLODED VIEW for the disassembly method of each P.W.B included in RADIATOR ASSY.125. POWER UNIT6. POWER TRANSTOP COVERPOWER UNITProceeding : Please refer to EXPLODED VIEW for the disassembly method of POWER UNIT.CABINET TOPTRANS MAINProceeding : Please refer to E
