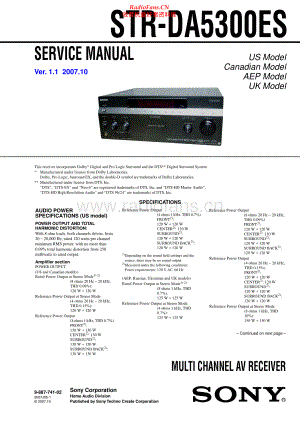

SERVICE MANUALAUDIO POWER SPECIFICATIONS (US model)POWER OUTPUT AND TOTAL HARMONIC DISTORTION:With 8 ohm loads, both channels driven, from 20 20,000 Hz; rated 120 watts per channel minimum RMS power, with no more than 0.09% total harmonic distortion from 250 milliwatts to rated output.Amplifier sectionPOWER OUTPUT(US and Canadian models)Rated Power Output at Stereo Mode1) 2)(8 ohms 20 Hz 20 kHz, THD 0.09%):120 W + 120 WReference Power Output at Stereo Mode(4 ohms 20 Hz 20 kHz, THD 0.15%):120 W + 120 WReference Power Output(8 ohms 1 kHz, THD 0.7%)FRONT2): 130 W + 130 WCENTER2): 130 WSURROUND2): 130 W + 130 WSURROUND BACK2): 130 W + 130 WReference Power Output(4 ohms 1 kHz, THD 0.7%)FRONT2): 120 W + 120 WCENTER2): 120 WSURROUND2): 120 W + 120 WSURROUND BACK2): 120 W + 120 W1)Depending on the sound field settings and the source, there may be no sound output2)Measured under the following conditions:Power requirements: 120 V AC, 60 Hz(AEP, Russian, Ukrainian and UK models)Rated Power Output at Stereo Mode1) 2)(8 ohms 1 kHz, THD 0.7%):125 W + 125 WReference Power Output at Stereo Mode(4 ohms 1 kHz, THD 0.7%):125 W + 125 WReference Power Output(8 ohms 20 Hz 20 kHz, THD 0.09%)FRONT2): 120 W + 120 WCENTER2): 120 WSURROUND2): 120 W + 120 WSURROUND BACK2): 120 W + 120 WReference Power Output(4 ohms 20 Hz 20 kHz, THD 0.15%)FRONT2): 120 W + 120 WCENTER2): 120 WSURROUND2): 120 W + 120 WSURROUND BACK2): 120 W + 120 WReference Power Output at Stereo Mode(8 ohms 1 kHz, THD 10%):150 W + 150 WMULTI CHANNEL AV RECEIVERSPECIFICATIONSVer. 1.1 2007.10 Continued on next page 9-887-741-022007J05-1 2007.10Sony CorporationHome Audio DivisionPublished by Sony Techno Create CorporationThis receiver incorporates Dolby* Digital and Pro Logic Surround and the DTS* Digital Surround System.*Manufactured under license from Dolby Laboratories.Dolby, Pro Logic, Surround EX, and the double-D symbol are trademarks of Dolby Laboratories.* Manufactured under license from DTS, Inc. “DTS”, “DTS-ES” and “Neo:6” are registered trademarks of DTS, Inc. and “DTS-HD Master Audio”, “DTS-HD High Resolution Audio” and “DTS 96/24” are trademarks of DTS, Inc.STR-DA5300ESUS ModelCanadian ModelAEP ModelUK ModelRadioFans.CN 收音机爱 好者资料库2STR-DA5300ESFrequency responseInputs (Analog)Inputs (Digital)OutputsEQUALIZERFM tuner sectionTuning range87.5 108.0 MHzAntenna (aerial)FM wire antenna (aerial)Antenna (aerial) terminals75 ohms, unbalancedAM tuner sectionT(US and Canadian models)uning rangeWith 10-kHz tuning scale530 1,710 kHz3)(AEP, Russian, Ukrainian and UK models)With 9-kHz tuning scale531 1,602 kHzWith 9-kHz tuning scale531 1,710 kHz3)Antenna (aerial)Loop antenna (aerial)3)You can change the AM tuning scale to either 9 kHz or 10 kHz After tuning in any AM station, turn off the receiver While holding down TUNING MODE, press POWER on the receiver All preset stations will be erased when you change the tuning scale To reset the scale to 10 kHz (or 9 kHz), repeat the procedureVideo sectionInputs/OutputsVideo:1 Vp-p, 75 ohmsCOMPONENT VIDEO:Y: 1 Vp-p, 75 ohmsPB/CB: 0.7 Vp-p, 75 ohmsPR/CR: 0.7 Vp-p, 75 ohms80 MHz HD Pass ThroughHDMI VideoInput/Output (HDMI Repeater block)640 480p60Hz720 480p59.94/60Hz1440 480p59.94/60Hz (pixel sent 2times)1280 720p59.94/60Hz1920 1080i59.94/60Hz1920 1080p59.94/60Hz720 576p50Hz1440 576p50Hz (pixel sent 2times)1280 720p50Hz1920 1080i50Hz1920 1080p50Hz1920 1080p24HzPHONORIAA equalization curve 0 5 dBMULTI CHANNEL INPUT, SA-CD/CD, MD/DAT, DVD/BD, TTAPE/CD-R, TAPE/CD-R, V, SAT/CATV,VIDEO 1/2/310 Hz 100 kHz 3 dBPHONOSensitivity: 2 5mVImpedance: 50kohmsS/N: 90dB (A, 20 kHz LPF)MULTI CHANNELINPUT, SA-CD/CD, MD/DAT, DVD/BD, TV, SAT/CATV, VIDEO 1/2/3Sensitivity: 150mVImpedance: 50kohmsS/N: 100dB (A, 20 kHz LPF)DVD/BD, VIDEO 2, SA-CD/CD (Coaxial)Impedance: 75ohmsS/N: 96dB (A, 20 kHz LPF)VIDEO 1, TV, SAT/CATV, TAPE/CDR,MD/DAT (Optical)S/N: 96 dB(A, 20 kHz LPF)MD/DAT (REC OUT), VIDEO 1, ZONE 2, ZONE 3 (AUDIO OUT)Voltage:150mVImpedance: 1kohmFRONT L/R, CENTER, SURROUND L/R, SURROUND BACK L/R, SUB WOOFERVoltage: 2VImpedance: 1kohmGain levels10 dB, 1 dB stepReference Power Output at Stereo Mode(4 ohms 1 kHz, THD 10%):150 W + 150 WReference Power Output(8 ohms 1 kHz, THD 10%)FRONT2): 150 W + 150 WCENTER2): 150 WSURROUND2): 150 W + 150 WSURROUND BACK2): 150 W + 150 WReference Power Output(4 ohms 1 kHz, THD 10%)FRONT2): 150 W + 150 WCENTER2): 150 WSURROUND2): 150 W + 150 WSURROUND BACK2): 150 W + 150 W1)Depending on the sound field settings and the source, there may be no sound output2)Measured under the following conditions:Power requirements: 230 V AC, 50/60 Hz (in countries/area in Europe other than the U K )240 V AC, 50/60 Hz (in the U K and general area)GeneralPower requirements 120 V AC, 60 Hz (US and Canadian models)Power output (DIGITAL MEDIA PORT)DC OUT:5 V, 700 mAPower consumption 480 W/580 VA (US/480 W (AEP, Russian, Ukrainian and UK models)Canada)Power consumption (during standby mode)0.7 W (when “HDMI Control” and “RS-232C Control” is set to “OFF”)Dimensions430 175 430 mm (width/height/depth)including projecting parts and controlsMass (Approx.)16.0 kgSupplied accessoriesOperating InstructionsQuick Setup Guide (1)HDMI CONTROL Guide (1)GUI Menu List (1)Optimizer microphone ECM-AC1 (1)FM wire antenna (aerial) (1)AM loop antenna (aerial) (1)AC power cord (mains lead) (1)Remote commander RM-AAL008 (1) (US and Canadian models)Remote commander RM-AAL009 (1) (AEP, Russian, Ukrainian and UK models)Remote commander RM-AAU016 (1)R6 (size-AA) batteries (4)Design and specifications are subject to change without notice.230 V AC, 50/60Hz (in countries/area in Europe other than the U.K.)230 240V AC, 50/60Hz (in the U.K. and general area)Ver. 1.1RadioFans.CN 收音机爱 好者资料库3STR-DA5300ESNotes on chip component replacement Never reuse a disconnected chip component. Notice that the minus side of a tantalum capacitor may bedamaged by heat.SAFETY-RELATED COMPONENT WARNING!COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINEWITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND INTHE PARTS LIST ARE CRITICAL TO SAFE OPERATION.REPLACE THESE COMPONENTS WITH SONY PARTS WHOSEPART NUMBERS APPEAR AS SHOWN IN THIS MANUAL ORIN SUPPLEMENTS PUBLISHED BY SONY.ATTENTION AU COMPOSANT AYANT RAPPORT LA SCURIT!LES COMPOSANTS IDENTIFIS PAR UNE MARQUE 0 SURLES DIAGRAMMES SCHMATIQUES ET LA LISTE DESPICES SONT CRITIQUES POUR LA SCURIT DEFONCTIONNEMENT. NE REMPLACER CES COM- POSANTSQUE PAR DES PICES SONY DONT LES NUMROS SONTDONNS DANS CE MANUEL OU DANS LES SUPPLMENTSPUBLIS PAR SONY.SAFETY CHECK-OUTAfter correcting the original service problem, perform the followingsafety check before releasing the set to the customer:Check the antenna terminals, metal trim, “metallized” knobs, screws,and all other exposed metal parts for AC leakage.Check leakage as described below.LEAKAGE TESTThe AC leakage from any exposed metal part to earth ground andfrom all exposed metal parts to any exposed metal part having areturn to chassis, must not exceed 0.5 mA (500 microamperes.).Leakage current can be measured by any one of three methods.1. A commercial leakage tester, such as the Simpson 229 or RCAWT-540A. Follow the manufacturers instructions to use theseinstruments.2. A battery-operated AC milliammeter. The Data Precision 245digital multimeter is suitable for this job.3. Measuring the voltage drop across a resistor by means of aVOM or battery-operated AC voltmeter. The “limit” indicationis 0.75 V, so analog meters must have an accurate low-voltagescale. The Simpson 250 and Sanwa SH-63Trd are examplesof a passive VOM that is suitable. Nearly all battery operateddigital multimeters that have a 2 V AC range are suitable. (SeeFig. A)Fig. A.Using an AC voltmeter to check AC leakage.1.5 k0.15 FACvoltmeter(0.75 V)To Exposed MetalParts on SetEarth GroundTABLE OF CONTENTS1.SERVICING NOTES.52.GENERAL. 113.DISASSEMBLY3-1.Disassembly Flow . 193-2.Case . 203-3.SP-TM Board, Tuner (FM/AM) . 203-4.D-CONNECT Board, DSP Board, DIGITAL Board,CIS Board and CONTROL Board. 213-5.D-VIDEO Board. 213-6.Front Panel Section . 223-7.S-VIDEO Board and A-VIDEO Board . 223-8.FLI-1.8REG Board and ANALOG Board. 233-9.Power Transformer (T001), E-VOL Board andMAIN Board. 243-10. Heat Sink Section . 254.TEST MODE. 265.ELECTRICAL ADJUSTMENTS. 306.DIAGRAMS6-1.Block Diagram CONTROL Section . 336-2.Block Diagram DSP Section . 346-3.Block Diagram DIGITAL AUDIO Section . 356-4.Block Diagram HDMI Section (1/2) . 366-5.Block Diagram HDMI Section (2/2) . 376-6.Block Diagram VIDEO PROCESS Section . 386-7.Block Diagram ANALOG AUDIO Section . 396-8.Block Diagram POWER AMP Section . 406-9.Block Diagram VIDEO Section (1/2) . 416-10. Block Diagram VIDEO Section (2/2) . 426-11. Block Diagram PANEL, CIS, XM/SIRIUS RECEIVER, DMPORT Section . 436-12. Block Diagram POWER SUPPLY Section . 446-13. Printed Wiring Board MAIN Board (Component Side) . 466-14. Printed Wiring Board MAIN Board (Conductor Side) . 476-15. Schematic Diagram MAIN Board (1/4) . 486-16. Schematic Diagram MAIN Board (2/4) . 496-17. Schematic Diagram MAIN Board (3/4) . 506-18. Schematic Diagram MAIN Board (4/4) . 516-19. Printed Wiring Board DIGITAL Board (Component Side) . 526-20. Printed Wiring Board DIGITAL Board (Conductor Side) . 536-21. Schematic Diagram DIGITAL Board (1/4) . 546-22. Schematic Diagram DIGITAL Board (2/4) . 556-23. Schematic Diagram DIGITAL Board (3/4) . 566-24. Schematic Diagram DIGITAL Board (4/4) . 576-25. Printed Wiring Board DSP Board (Side A) . 586-26. Printed Wiring Board DSP Board (Side B) . 596-27. Schematic Diagram DSP Board (1/4) . 606-28. Schematic Diagram DSP Board (2/4) . 616-29. Schematic Diagram DSP Board (3/4) . 626-30. Schematic Diagram DSP Board (4/4) . 636-31. Printed Wiring Board ANALOG Board (Component Side) . 646-32. Printed Wiring Board ANALOG Board (Conductor Side) . 656-33. Schematic Diagram ANALOG Board (1/3) . 666-34. Schematic Diagram ANALOG Board (2/3) . 676-35. Schematic Diagram ANALOG Board (3/3) . 684STR-DA5300ES6-92. Printed Wiring Board AC Board (TYPE A) . 1246-93. Printed Wiring Board AC Board (TYPE B) . 1246-94. Schematic Diagram AC Board . 1257.EXPLODED VIEWS7-1.Case Section .1737-2.DIGITAL Board Section . 1747-3.D-VIDEO Board Section. 1757-4.DISPLAY Board Section. 1767-5.Front Panel Section . 1777-6.A-VIDEO Board Section. 1787-7.ANALOG Board Section . 1797-8.Heat Sink Section . 1807-9.MAIN Board Section. 1818.ELECTRICAL PARTS LIST. 1826-36. Printed Wiring Board E-VOL Board . 696-37. Schematic Diagram E-VOL Board (1/2) . 706-38. Schematic Diagram E-VOL Board (2/2) . 716-39. Printed Wiring Boards CONNECTOR Section . 726-40. Schematic Diagram CONNECTOR Section . 736-41. Printed Wiring Board TEMPERATURE DETECTION Board . 746-42. Schematic Diagram TEMPERATURE DETECTION Board . 746-43. Printed Wiring Board A-CLASS AMP Board . 756-44. Schematic Diagram A-CLASS AMP Board (1/2) . 766-45. Schematic Diagram A-CLASS AMP Board (2/2) . 776-46. Printed Wiring Board POWER AMPLIFIER Board . 786-47. Schematic Diagram POWER AMPLIFIER Board . 796-48. Printed Wiring Board PROTECTOR (F-C) Board . 806-49. Schematic Diagram PROTECTOR (F-C) Board . 816-50. Printed Wiring Boards PROTECTOR (SB/SURR) Section . 826-51. Schematic Diagram PROTECTOR (SB/SURR) Section . 836-52. Printed Wiring Board BIAS Board . 846-53. Schematic Diagram BIAS Board . 856-54. Printed Wiring Board SP-TM Board . 866-55. Schematic Diagram SP-TM Board . 876-56. Printed Wiring Board D-VIDEO Board (Component Side) . 886-57. Printed Wiring Board D-VIDEO Board (Conductor Side) . 896-58. Schematic Diagram D-VIDEO Board (1/12) . 906-59. Schematic Diagram D-VIDEO Board (2/12) . 916-60. Schematic Diagram D-VIDEO Board (3/12) . 926-61. Schematic Diagram D-VIDEO Board (4/12) . 936-62. Schematic Diagram D-VIDEO Board (5/12) . 946-63. Schematic Diagram D-VIDEO Board (6/12) . 956-64. Schematic Diagram D-VIDEO Board (7/12) . 966-65. Schematic Diagram D-VIDEO Board (8/12) . 976-66. Schematic Diagram D-VIDEO Board (9/12) . 986-67. Schematic Diagram D-VIDEO Board (10/12) . 996-68. Schematic Diagram D-VIDEO Board (11/12) . 1006-69. Schematic Diagram D-VIDEO Board (12/12) . 1016-70. Printed Wiring Board A-VIDEO Board (Component Side) . 1026-71. Printed Wiring Board A-VIDEO Board (Conductor Side) . 1036-72. Schematic Diagram A-VIDEO Board (1/4) . 1046-73. Schematic Diagram A-VIDEO Board (2/4) . 1056-74. Schematic Diagram A-VIDEO Board (3/4) . 1066-75. Schematic Diagram A-VIDEO Board (4/4) . 1076-76. Printed Wiring Board S-VIDEO Board . 1086-77. Schematic Diagram S-VIDEO Board . 1096-78. Printed Wiring Board VIDEO3 Board . 1106-79. Schematic Diagram VIDEO3 Board . 1116-80. Printed Wiring Board CONTROL Board (Component Side) . 1126-81. Printed Wiring Board CONTROL Board (Conductor Side) . 1136-82. Schematic Diagram CONTROL Board (1/2) . 1146-83. Schematic Diagram CONTROL Board (2/2) . 1156-84. Printed Wiring Board CIS Board . 1166-85. Schematic Diagram CIS Board . 1176-86. Printed Wiring Board DISPLAY Board . 1186-87. Schematic Diagram DISPLAY Board . 1196-88. Printed Wiring Boards PANEL Section . 1206-89. Schematic Diagram PANEL Section . 1216-90. Printed Wiring Board DC-DC Board . 1226-91. Schematic Diagram DC-DC Board . 123Note 1:Refer “NOTE WHEN THE AC BOARD IS REPAIRED”(page 5) in servicing notes for how to distinguish TYPEA/B.Ver. 1.1Note 2:Refer to SUPPLEMENT-1 for the CONTROL, DIGITAL andDSP boards of printed wiring boards, schematic diagramsand electrical parts list of Russian and Ukrainian models.When repairing the set of US, Canadian, AEP and UKmodels, refer to either of original service manual/SUPPLE-MENT-1 according to the set.5STR-DA5300ESSECTION 1SERVICING NOTESUNLEADED SOLDERBoards requiring use of unleaded solder are printed with the lead-free mark (LF) indicating the solder contains no lead.(Caution: Some printed circuit boards may not come printed withthe lead free mark due to their particular size): LEAD FREE MARKUnleaded solder has the following characteristics. Unleaded solder melts at a temperature about 40 C higherthan ordinary solder.Ordinary soldering irons can be used but the iron tip has to beapplied to the solder joint for a slightly longer time.Soldering irons using a temperature regulator should be set toabout 350 C.Caution: The printed pattern (copper foil) may peel away ifthe heated tip is applied for too long, so be careful! Strong viscosityUnleaded solder is more viscou-s (sticky, less prone to flow)than ordinary solder so use caution not to let solder bridgesoccur such as on IC pins, etc. Usable with ordinary solderIt is best to use only unleaded solder but unleaded solder mayalso be added to ordinary solder.NOTE OF REPLACING THE IC3601 ON THED-VIDEO BOARDReplacement of IC3601 on the D-VIDEO board used in this setrequires a special tool.NOTE WHEN THE AC BOARD IS REPAIRED(US and Canadian models only)Note: AEP, Russian, Ukrainian and UK models uses only TYPE B.Two types exist in the AC board for US and Canadian models.Repair after distinguishing which type it is referring to the figurebelow. MODEL IDENTI
