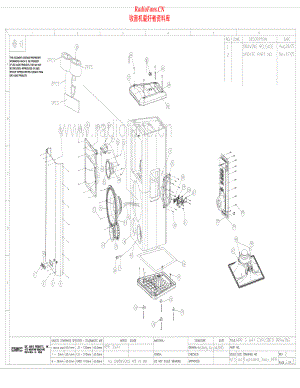

QSC-HPR153f-spk-drw 维修电路原理图.pdf
RadioFans.CN 收音机爱 好者资料库6/7/7Rev. AItem Number Component DescriptionComponent Item NumberQty1LOGO,HPR SERIES,PL-000440-GP12SCREW,TRUSS HEAD,M4X16,JHC030-00,SC-000099-GP223S/L WASHER,M9.7X22X0.5,NW-000105-GP24GRILL,HPR153F,CH-000477-GP15GASKET,1000X10X2MM,EVA B,PL-000062-GP66HORN,MF, HF,HPR153F,PL-000447-GP17Z/T WASHER,M5X0.8X10MM,WZ,NW-000110-GP28SCREW,M5X25,PAN HEAD,DIA 8XH2.5,BLACK,SC-000094-GP109COMPRESSION DRIVER,1.4,ALUMINUM,NEODYMIUM,CELESTION,CDX1-1425,T5455_GPESP-000086-GP110SCREW,PH,M5X85MM,BLACK,SC-000098-GP811MA SCREW,4X7 6.5MM,YW-ZN,JG1601,SC-000089-GP212WOOFER,15,PAPER,FERRITE,CELESTION,TRUVOX 1530,T5449_GPESP-000084-GP113SCREW,M5,HEXAGON-SOCKET,SC-000092-GP2614PORT TUBE,FOR HPR,PL-000071-GP415PAPER TUBE,FOR HPR 3WAY,15MM,MS-000077-GP216CABINET,FOR HPR 3WAY,SB-000052-GP117LED,3MM,BLUE SP,SLR343BB T 225419 ROHM,QD-000312-GP118LED HOLDER,FOR HPR,PL-000479-GP119FEET,END CAP,HPR,RUBBER, A,PL-000441-GP120FEET,END CAP,HPR,RUBBER, B,PL-000442-GP121FEET,END CAP,HPR,RUBBER, C,PL-000443-GP122FEET,END CAP,HPR,RUBBER, D,PL-000444-GP123GRILLE,GASKET,FOR QBASS,PL-000067-GP524GASKET,FOR QBASS END CAP (1M),PL-000068-GP425SCREW WOOD,M4X20,BIND HEAD BZ,SC-000100-GP4626MIDRANGE,6.5,PAPER,FERRITE,CELESTION,TRUVOX 0615,T5457_GPESP-000085-GP127TOP HANDLE,FOR HPR,SIDE HANDLE,CH-000494-GP228RUBBER GRIP,FOR HPR SIDE HANDLE,PL-000072-GP229BOTTOM HANDLE,FOR HPR,SIDE HANDLE,CH-000523-GP230SCREW,M5X12,PH BLK ZN,SC-000096-GP431HANDLE CAP,FOR HPR,PL-000076-GP232PLUG ENDCAP,FOR HPR 3WAY,PL-000073-GP233SPRING WASHER,M4X0.8X7,MM YEL,NW-000106-GP434AMP MODULE,HPR153F,120V,WP-001536-00135EVA GASKET,5X500,PL-000066-GP536ENDCAP,FOR HPR-2WAY/3WAY,PL-000069-GP2Page 2 of 3RadioFans.CN 收音机爱 好者资料库6/7/7Rev. AItem Number Component DescriptionComponent Item Number Qty37FRONT HANDLE,FOR HPR,ENDCAP,CH-000491-GP238REAR HANDLE,FOR HPR,ENDCAP,CH-000493-GP239ACOUSTIC WOOL,200X600X30,MS-000074-GP740WIRE,BLACK&BLACK,26 AWG TWIN,1080MM,UL2468WC-000420-GP141#16 AWG WIRE,UL1015 PIN,T65-6Y-2,WC-000418-GP142GASKET,D32XD26.5X1MM,EVA BK,PL-000061-GP143GASKET,1300X10X4MM,EVA BK,PL-000063-GP144RUBBER COVER,FOR HPR HANDLE HOLE,PL-000074-GP445FOAM STRIP,MP1,406.4X6X4,SP8296,PL-000065-GP146MOUNTING PLATE,POWDER COATED,HPR-3WAY,CH-000574-GP247MOUNTING BOSS,HPR-3WAY,CH-000575-GP248K5004025102,M4X7.8M,JGC046-00,SC-000088-GP2Page 3 of 3
