Marantz-SR5004-avr-mz09176 电路图 维修手册.pdf

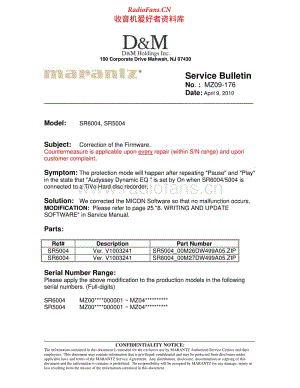

100 Corporate Drive Mahwah, NJ 07430 Service Bulletin No. : MZ09-176 Date: April 9, 2010 _ Model: SR6004, SR5004 Subject: Correction of the Firmware. Countermeasure is applicable upon every repair (within S/N range) and upon customer complaint. Symptom: The protection mode will happen after repeating Pause and Play in the state that Audyssey Dynamic EQ is set by On when SR6004/5004 is connected to a TiVo Hard disc recorder. Solution: We corrected the MICON Software so that no malfunction occurs. MODIFICATION: Please refer to page 25 8. WRITING AND UPDATE SOFTWARE in Service Manual. Parts: Ref# Description Part Number SR5004 Ver. V1003241 SR5004_00M26DW499A05.ZIP SR6004 Ver. V1003241 SR6004_00M27DW499A05.ZIP Serial Number Range: Please apply the above modification to the production models in the following serial numbers. (Full-digits) SR6004 MZ00*000001 MZ04* SR5004 MZ00*000001 MZ04* _ CONFIDENTIALITY NOTICE: The information contained in this document is intended for the exclusive use by MARANTZ Authorized Service Centers and their employees. This document may contain information that is privileged, confidential and may be protected from disclosure under applicable laws and terms of the MARANTZ Service Agreement. Any distribution, disclosure, dissemination or copying of this document and the information it contains is prohibited. No responsibility will be accepted by MARANTZ for any damage, injury or loss resulting from the misuse of the information contained in this document. RadioFans.CN 收音机爱 好者资料库
