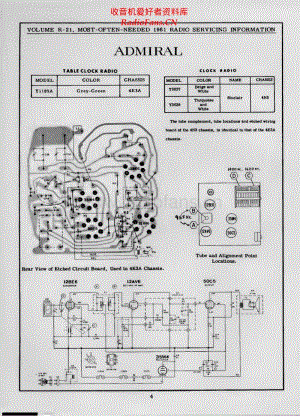

VOLUME R-21, MOST-OFTEN-NEEDED 1961 RADIO SERVICING INFORMATION ADMIRAL TABLE CLOCK RADIO MODEL COLOR CHASSIS Y1189A Grey-Green 4E3A CLOCK RADIO MODEL COLOR NAME CHASSIS Y3037 Beige and White Sinclair 4N3 Y3038 Turquoise and White The tube complement, tube locations and etched wiring board of the 4N3 chassis, Is Identical to that of the 4E3A chassis- 1400 KC. 1120 KC. Tube and Alignment Point Locations. Rear View of Etched Circuit Board, Used in 4E3A Chassis. 12BE6 I2AV6 CONVERTER AA /g DET.-AVC-AF AMP. 50C5 OUTPUT 收音机爱 好者资料库 RadioFans.CN
